2800-LR Adapter/Battery
H-2800-LR
The 2800 Series Smart Commercial Faucet is a single-hole deck mounted, infrared operated electronic sensory faucet that provides a vandal resistant, Lead Free, no touch lavatory solution and promotes better hygiene and energy savings for washbasins. Designed to be easy to install and maintain, all major faucet components are encased above deck, making for easier access. The sensor included in this faucet is self adapting, meaning manual adjustments are not necessary.
Asia
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
Europe
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
America
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
Oceania
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
- Faucet construction: solid brass, chrome plated.
- Control Circuit - Solid State, AC or Battery, Switchable.
- Auto. Time-Out: Preset at 20 seconds and adjustable to 10, 30, 60, 90, 1200 seconds.
- Line purge (request only): 2 minutes run every 12 or 24 hours, 14 seconds every 8 hours.
- Scrub Mode (request only): 30, 60, 120 seconds.
- Sensor Range: Preset and Adjustable.
- Shut-Off Delay: Preset and Adjustable from 0.5, 1 seconds.
- Control Cable: Armored, Vandal Resistant.
- Solenoid Valve: 6 V DC, Normally closed.
- Wattage: 0.4 W (Idle), 5 W (In use).
- Flow Control: 0.5 GPM vandal resistant.
- 1. 1.6 GPM VR Soft-Flow Aerator; 0.35, 1.5 & 2.2 GPM Laminar Flow.
- 2. 8"Center set Cover Plate.
- 3. Mixing/Check Valve (Mechanical).
- 4. Thermostatic Mixing Valve with Checks.
Optional accessories:
- H-2800-LR Chrome Plated，AC Powered
- HE-2800-LR Chrome Plated，Battery Powered
- Special Finishes

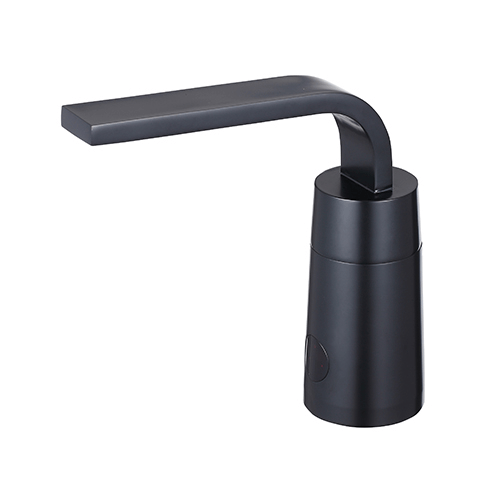

- Matte Black (-MB)

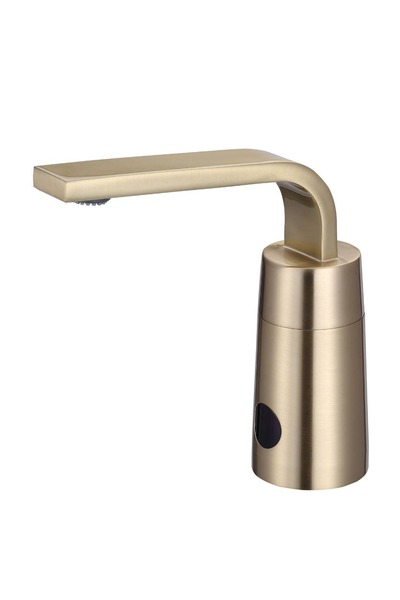

- Polished Brass (-PB)

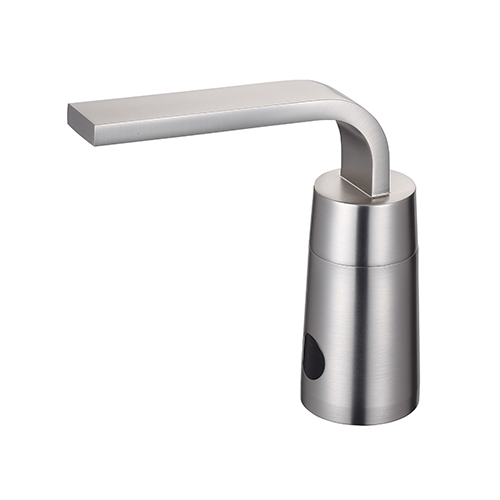

- Brushed Nickel (-BN)
- Additional Finishes upon request
- Mechanical Construction:
- Above deck faucet design allows for quick and simple installation and access to all major faucet component parts
- Vandal resistant faucet body with chrome plated, solid metal construction
- Single-hole deck mount with optional 4” and 8” cover plate for vandal resistant three point anchoring
- Includes in-line filter adapter for easier cleaning
- Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloramines, or ammonia
- Standard 0.5 GPM flow control for water conservation and annual savings
- All parts are replaceable
- Maintenance work can also be carried out by non-technical personnel
- Advanced Electronic Technologies:
- The faucet can be switched from AC power mode to Battery power mode and vice versa
- AC power with DC back-up for uninterrupted power
- Enduratek is an electrical system that allows a set of four batteries to run the faucet for 1.5 million on/off cycles
- The diagnostic light blinks when the battery is low (DC mode)
- “Self-adapting” sensor distance adjustment eliminates the need for manual sensor adjustments.
- Cutting Edge Solenoid Valve:
- Installing the Bi-Stable Solenoid Valve
- Patented electronics and slow closing solenoid valves provide reliable and smooth operation without water hammer
- Faucet construction: solid brass, chrome plated.
- Control Circuit - Solid State, AC or Battery, Switchable.
- Auto. Time-Out: Preset at 20 seconds and adjustable to 10, 30, 60, 90, 1200 seconds.
- Line purge (request only): 2 minutes run every 12 or 24 hours, 14 seconds every 8 hours.
- Scrub Mode (request only): 30, 60, 120 seconds.
- Sensor Range: Preset and Adjustable.
- Shut-Off Delay: Preset and Adjustable from 0.5, 1 seconds.
- Control Cable: Armored, Vandal Resistant.
- Solenoid Valve: 6 V DC, Normally closed.
- Wattage: 0.4 W (Idle), 5 W (In use).
- Flow Control: 0.5 GPM vandal resistant.
- 1. 1.6 GPM VR Soft-Flow Aerator; 0.35, 1.5 & 2.2 GPM Laminar Flow.
- 2. 8"Center set Cover Plate.
- 3. Mixing/Check Valve (Mechanical).
- 4. Thermostatic Mixing Valve with Checks.
