6300-LR Adapter/Battery
H-6300LR

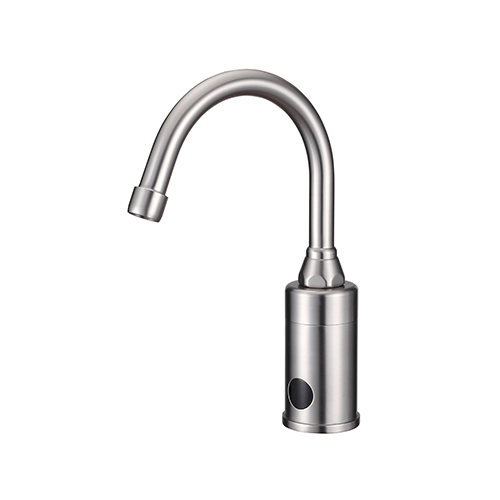

The 6300-LR Series faucet is a single-hole deck mounted smart sensory faucet that provides a vandal resistant, low lead, no touch solution and promotes better hygiene and energy savings. Designed to be easy to install and maintain, all major faucet components are encased above deck, making for easier access. The sensor included in this faucet is self adapting, meaning manual adjustments are not necessary.
Asia
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
Europe
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
America
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
Oceania
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
- Faucet construction: solid brass, chrome plated.
- Control Circuit - Solid State, AC or Battery, Switchable.
- Auto. Time-Out: Preset at 20 seconds and adjustable to 10, 30, 60, 90, 1200 seconds.
- Line purge (request only): 2 minutes run every 12 or 24 hours.
- Scrub Mode (request only): 60, 120 , 180 minutes.
- Shut-Off Delay: Preset and Adjustable from 1-8 seconds.
- Control Cable: Armored, Vandal Resistant.
- Solenoid Valve: 6V, Normally closed.
- Wattage: 0.2W (Idle), 3W (In use).
- Operating Pressure: 5 Psi to 125 Psi.
- Flow Control: 0.5 GPM vandal resistant.
- 1. 1.6GPM VR Soft-Flow Aerator; 0.35, 1.5 & 2.2 GPM Laminar Flow.
- 2. 4" or 8"Centerset Cover Plate.
- 3. Mixing/Check Valve (Mechanical).
Optional accessories:
- H-6300-LR Chrome Plated， AC Powered
- HE-6300-LR Chrome Plated，Battery Powered
- Special Finishes:
- Matte Black (-MB)
- Polished Brass (-PB)
- Brushed Nickel (-BN)
- Additional Finishes upon request
- Vandal-resistant faucet body with chrome plated, solid brass construction.
- Faucet design allows quick "above the deck" access to all major faucet components parts.
- 30 second time-out feature prevents accidental sink overflow.
- Integrated faucet mixing valve (with built-in checks).
- "Above the deck" external or internal temperature adjustment variation.
- Low battery indicator light (battery powered models only).
- Standard 0.5 GPM flow control for water conservation and annual savings.
- Single-hole deck mounting with optional 4" and 8" cover plate for vandal resistant, three point anchoring.
- Patented electronics and slow closing solenoid valves provide reliable and smooth operation without water hammer.
- Preset/adjustable sensor range of 6" - 8" for various installation requirements.
- Includes in-line filter adapter for easier cleaning.
- Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloramines, or ammonia.
- Faucet construction: solid brass, chrome plated.
- Control Circuit - Solid State, AC or Battery, Switchable.
- Auto. Time-Out: Preset at 20 seconds and adjustable to 10, 30, 60, 90, 1200 seconds.
- Line purge (request only): 2 minutes run every 12 or 24 hours.
- Scrub Mode (request only): 60, 120 , 180 minutes.
- Shut-Off Delay: Preset and Adjustable from 1-8 seconds.
- Control Cable: Armored, Vandal Resistant.
- Solenoid Valve: 6V, Normally closed.
- Wattage: 0.2W (Idle), 3W (In use).
- Operating Pressure: 5 Psi to 125 Psi.
- Flow Control: 0.5 GPM vandal resistant.
- 1. 1.6GPM VR Soft-Flow Aerator; 0.35, 1.5 & 2.2 GPM Laminar Flow.
- 2. 4" or 8"Centerset Cover Plate.
- 3. Mixing/Check Valve (Mechanical).
Optional accessories:
