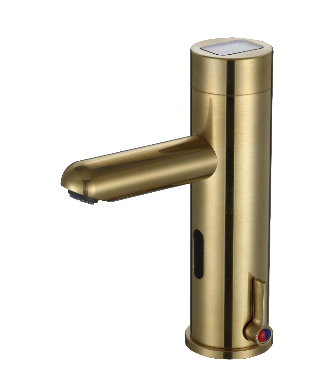

7100SLEM-LR Battery type
.jpg)
Asia
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
Europe
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
America
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
Oceania
-
PC Systems (Tokyo)LOOP-X 8F, 3-9-15 Kaigan, Minato-ku, Tokyo, Japan 108-0022
Tel: +81-3-5446-5533
Email: hpcs_sales@hpc.co.jp -
K.Mecs Co. Ltd. (Tokyo)Yusen Iwamotocho BLDG, 3F, 2-3-3 Iwamotocho, Chiyodaku, Tokyo, Japan 101-0032
Tel: +81-3-5825-5333
Email: info@kmecs.co.jp -
ID Solution LLC117405, RUSSIA, Moscow, Dorognaya st., d. 60B, BC "Annino"
Tel: +7-495-5453283
Email: info@idsolution.ru
Faucet Construction: Solid brass, chrome plated
Auto. time-out: 20 seconds
Sensor range: self adapting, factory preset 160+20 mm
Line Purge: 5 seconds every 24 hours
Shut-Off Delay: 0.5 second
Solenoid Valve: 6 V DC, normally closed, bi-stable
Wattage: 0.2 W (idle), 3 W (in use)
Flow Control: 0.5 gpm Laminar, vandal resistance
Battery power model: (4) AA Alkaline Batteries
Enduratek battery service life: 1.5 million on/off cycle, up to 10 years
Optional parts:
Variable flow controls
4" or 8" Center set Cover Plate
HE-7100SLELR Chrome plated, Battery operated
HE-7100SLEMLR Chrome plated, Battery operated
Special Finishes:
Matte Black (-MB)
Polished Brass (-PB)
Bronze Nickel (-BN)
Additional finishes upon request
- Faucet body with vandal-resistant design
- "Above the deck" access to all major faucet components parts
- "Above the deck" external or internal temperature adjustment variation
- Flexible supply hose resists high pressure
- Includes an in-line filter adapter for easier cleaning
- Superior silicone elasticity seals are not affected by chlorine, chlorammine, or ammonia
- All parts are replaceable
- Maintenance can also be carried out by non-technical personnel
Advanced Electronic Technologies:
- The diagnostic light blinks when the battery is low
- Enduratek is an electrical system that allows a set of four batteries to run the faucet for 1.5 million on/off cycles
- The waterproof level of the electronic system is IP 67, and the connector is IP 68
- Preset/adjustable sensor range of 6" - 8" for various installation requirements
Cutting Edge Solenoid Valve:
- Installing the Bi-Stable Solenoid Valve
- Patented electronics and slow closing solenoid valves provide reliable and smooth operation without water hammer
- Best choice for green energy environment and earth
- Provides stability and good electrical performance
- Valve Seat material has excellent heat resistance, hydrolytic stability, and durability, is certified for potable water use
Faucet Construction: Solid brass, chrome plated
Auto. time-out: 20 seconds
Sensor range: self adapting, factory preset 160+20 mm
Line Purge: 5 seconds every 24 hours
Shut-Off Delay: 0.5 second
Solenoid Valve: 6 V DC, normally closed, bi-stable
Wattage: 0.2 W (idle), 3 W (in use)
Flow Control: 0.5 gpm Laminar, vandal resistance
Battery power model: (4) AA Alkaline Batteries
Enduratek battery service life: 1.5 million on/off cycle, up to 10 years
Optional parts:
Variable flow controls
4" or 8" Center set Cover Plate
